Replace the old scrollbar mode in another way(imperfect)

Cheat Engine Forum Index -> Cheat Engine Lua Scripting

View previous topic :: View next topic

Author

Message

.lua
Expert Cheater

Reputation: 1

Joined: 13 Sep 2018
Posts: 203

Posted: Wed Sep 16, 2020 11:50 am Post subject: Replace the old scrollbar mode in another way(imperfect)

How to accurately calculate the ratio between them: ListBox.TopIndex , Panel.Width , Panel.Left

Code:

function setColor(control)
if pb then pb.destroy() end
pb=createPaintBox(control)
pb.setSize(control.Width,control.Height)
pb.OnPaint=function(s)
s.canvas.Clear()
s.Canvas.gradientFill(0,0,s.Width,s.Height,0xff00ff,0xffff00,1)
end
end
function setMouseWheelDown(control,Panel)
control.OnMouseWheelDown=function()
if Panel.Width >=10 and Panel.Width <=280 then
if control.TopIndex>0 then
Panel.Width=Panel.Width - control.TopIndex//2
Panel.Left=Panel.Left + control.TopIndex//4
end
else
Panel.Left=20 Panel.Width=280
end
setColor(Panel) f.Caption='W:'..Panel.Width..' L:'..Panel.Left..' Index:'..control.TopIndex
end
end
function setMouseWheelUp(control,Panel)
control.OnMouseWheelUp=function()
if control.TopIndex==0 then Panel.Left=20 Panel.Width=280 end
if Panel.Left >=20 and Panel.Width <=280 then
Panel.Width=Panel.Width + control.TopIndex//2
Panel.Left=Panel.Left - control.TopIndex//4
else
Panel.Left=20 Panel.Width=280
end
setColor(Panel) f.Caption='W:'..Panel.Width..' L:'..Panel.Left..' Index:'..control.TopIndex
end
end
if f then f.destroy() end
f=createForm()
f.Position='poDesktopCenter'
Box1=createListBox(f)
Box1.setPosition(20,20)
Box1.setSize(100,150)
for i=1,50,2 do
strings_add(Box1.Items, i)
end

Box2=createListBox(f)
Box2.setPosition(200,20)
Box2.setSize(100,150)
for i=0,100,2 do
strings_add(Box2.Items, i)
end

P=createPanel(f)
P.setPosition(20,200)
P.setSize(280,5)
setColor(P)

setMouseWheelDown(Box1,P)
setMouseWheelUp(Box1,P)

setMouseWheelDown(Box2,P)
setMouseWheelUp(Box2,P)

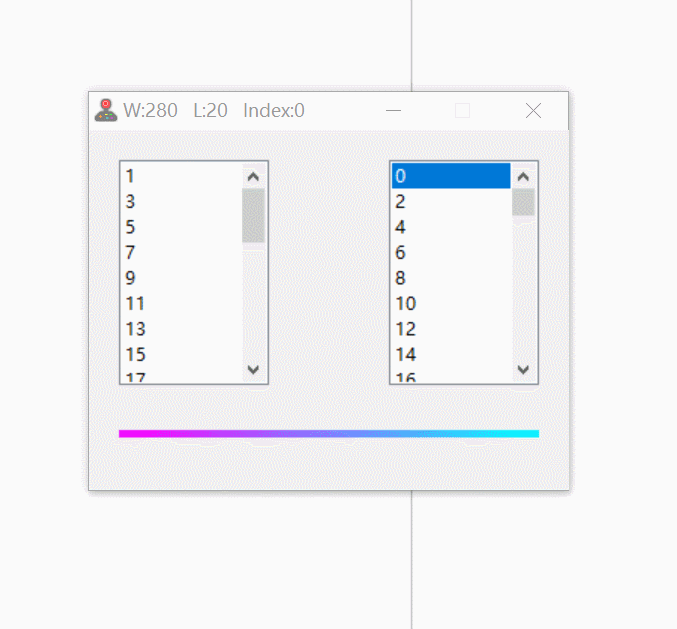

A new attempt.gif

Description:

Filesize:

268.93 KB

Viewed:

1366 Time(s)

.lua
Expert Cheater

Reputation: 1

Joined: 13 Sep 2018
Posts: 203

Posted: Thu Sep 17, 2020 2:16 am Post subject:

After research, we finally found the value of Max, so we can bind the width of the control

Code:

function setColor(control)
if pb then pb.destroy() end
pb=createPaintBox(control)
pb.setSize(control.Width,control.Height)
pb.OnPaint=function(s)
s.canvas.Clear()
s.Canvas.gradientFill(0,0,s.Width,s.Height,0xff00ff,0xffff00,1)
end
end
function setMouseWheelDown(control,Panel)
control.OnMouseWheelDown=function() local max=(control.Items.getCount()-1)-(control.Height//20)
if control.TopIndex >=0 then
Panel.Width=control.Height-max*2
end
if control.TopIndex <max-2 then
Panel.Left=(control.TopIndex+3)*4
else
Panel.Left=Pa.width-Panel.Width-5
end
setColor(Panel) f.Caption='W:'..Panel.Width..' L:'..Panel.Left..' Index:'..control.TopIndex
end
end
function setMouseWheelUp(control,Panel)
control.OnMouseWheelUp=function() local max=(control.Items.getCount()-1)-(control.Height//20)
if control.TopIndex<=3 then
Panel.Left=0 Panel.Width=control.Height-max*2
end
if Panel.Left>=0 and Panel.Left<=Pa.Width-Panel.Width then
if control.TopIndex>0 then
Panel.Width=control.Height-max*2
end
if control.TopIndex<max then
Panel.Left=(control.TopIndex+1)*4
end
end
setColor(Panel) f.Caption='W:'..Panel.Width..' L:'..Panel.Left..' Index:'..control.TopIndex
end
end
if f then f.destroy() end
f=createForm()
f.Position='poDesktopCenter'
Box1=createListBox(f)
Box1.setPosition(20,20)
Box1.setSize(100,150)
for i=1,50,2 do
strings_add(Box1.Items, i)
end

Box2=createListBox(f)
Box2.setPosition(200,20)
Box2.setSize(100,150)
for i=0,130,2 do
strings_add(Box2.Items, i)
end

Pa=createPanel(f)
Pa.setPosition(20,200)
Pa.setSize(282,7)
Pa.BevelColor=0xb4b4b4

P=createPanel(Pa)
P.setPosition(1,1)
P.setSize(200,5)
setColor(P)

setMouseWheelDown(Box1,P)
setMouseWheelUp(Box1,P)

setMouseWheelDown(Box2,P)
setMouseWheelUp(Box2,P)


Description:

Filesize:

102.33 KB

Viewed:

1331 Time(s)

MMM-304
Expert Cheater

Reputation: 0

Joined: 17 Aug 2020
Posts: 170
Location: Milkey Way

Posted: Thu Sep 17, 2020 9:12 am Post subject:

works only when mouse wheel is used to scroll otherwise doesnt work

Corroder
Grandmaster Cheater Supreme

Reputation: 75

Joined: 10 Apr 2015
Posts: 1668

Posted: Thu Sep 17, 2020 7:09 pm Post subject:

MMM-304 wrote:

works only when mouse wheel is used to scroll otherwise doesnt work

Of course, that is why it's call as 'Scroll Bar Indicator'
_________________

Stealing Code From Stolen Code...
And Admit It.. Hmmm....Typically LOL
