It need to be optimized to realize Gaussian blur with canvas

Cheat Engine Forum Index -> Cheat Engine Lua Scripting

View previous topic :: View next topic

Author

Message

.lua
Expert Cheater

Reputation: 1

Joined: 13 Sep 2018
Posts: 202

Posted: Thu Aug 27, 2020 5:51 am Post subject: It need to be optimized to realize Gaussian blur with canvas

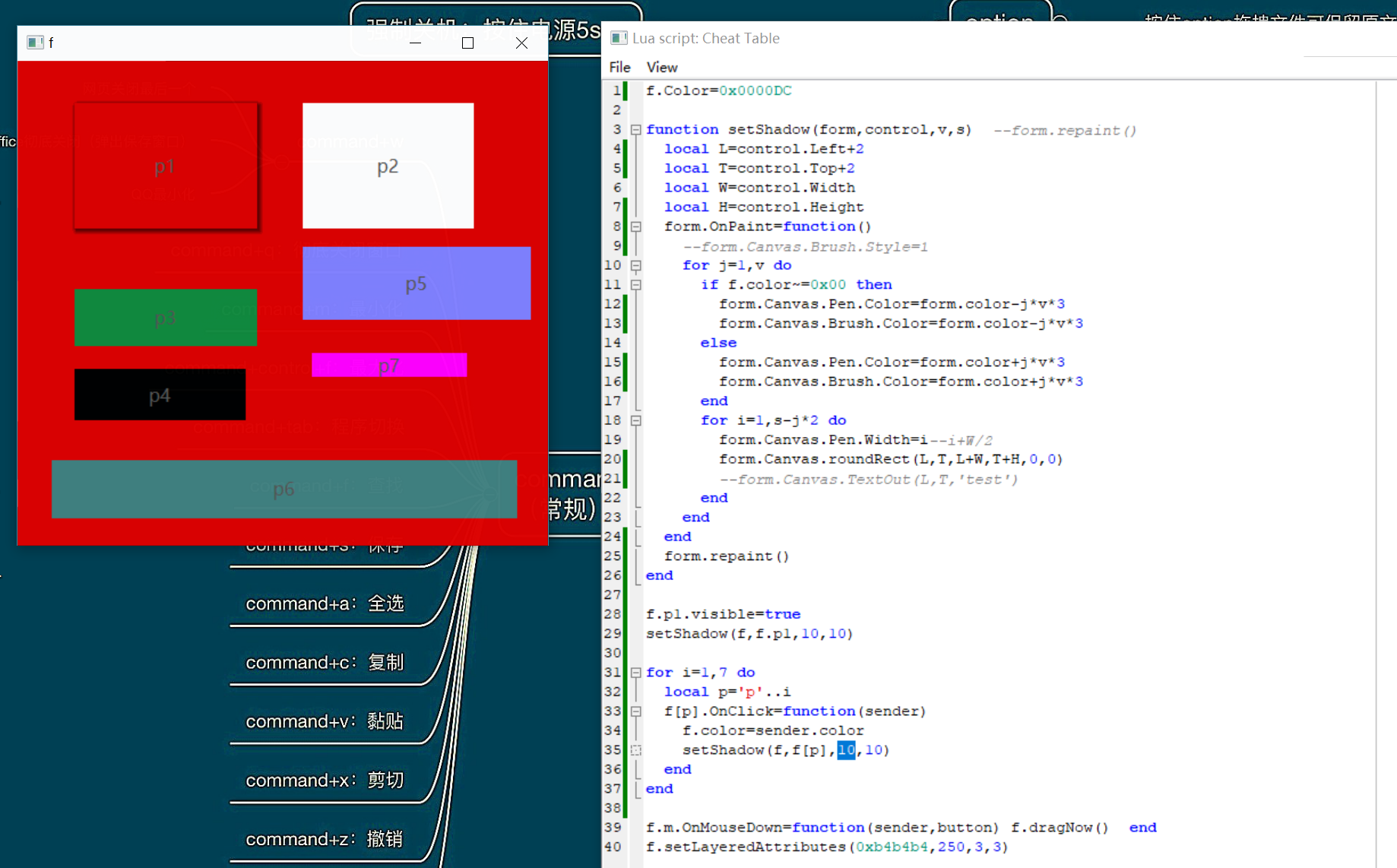

This is an example written in ce7.1, where you need to create a form, an image, and several panels...
I need your help next.
First: I just want a black fuzzy background (I don't know the fuzzy algorithm)
Second: how to make all the controls display the fuzzy background together。

Code:

f.Color=0x0000DC

function setShadow(form,control,v,s) --form.repaint()
local L=control.Left+2
local T=control.Top+2
local W=control.Width
local H=control.Height
form.OnPaint=function()
--form.Canvas.Brush.Style=1
for j=1,v do
if f.color~=0x00 then
form.Canvas.Pen.Color=form.color-j*v*3
form.Canvas.Brush.Color=form.color-j*v*3
else
form.Canvas.Pen.Color=form.color+j*v*3
form.Canvas.Brush.Color=form.color+j*v*3
end
for i=1,s-j*2 do
form.Canvas.Pen.Width=i--i+W/2
form.Canvas.roundRect(L,T,L+W,T+H,0,0)
--form.Canvas.TextOut(L,T,'test')
end
end
end
form.repaint()
end

f.p1.visible=true
setShadow(f,f.p1,10,10)

for i=1,7 do
local p='p'..i
f[p].OnClick=function(sender)
f.color=sender.color
setShadow(f,f[p],10,10)
end
end

f.m.OnMouseDown=function(sender,button) f.dragNow() end
f.setLayeredAttributes(0xb4b4b4,250,3,3)


Description:

Filesize:

696.3 KB

Viewed:

1228 Time(s)

Corroder
Grandmaster Cheater Supreme

Reputation: 75

Joined: 10 Apr 2015
Posts: 1668

Posted: Fri Aug 28, 2020 12:59 pm Post subject:

This is about Gaussian Blur implementation through the image in VB Net, I've done. Maybe the Gaussian Blur usage logic in the script will help. I try to port the script to CE Lua, but some part I don't know how to re-write in Lua.

VB Net script:

Code:

Private Function ColourAvg(ByVal szAvgSize As Size, ByVal szfImageSize As SizeF, ByVal intX As Integer, ByVal intY As Integer) As Color

Dim arrlPixels As New ArrayList 'Host All Pixels

Dim x As Integer 'X Location
Dim y As Integer 'Y Location

Dim bmpBlurDest As Bitmap = picBlurDest.Image.Clone 'Image To Be Cloned

'Find Each Pixel's Colour And Add To ArrayList
For x = intX - CInt(szAvgSize.Width / 2) To intX + CInt(szAvgSize.Width / 2) 'Left To Right

For y = intY - CInt(szAvgSize.Height / 2) To intY + CInt(szAvgSize.Height / 2) 'Up To Down

If (x > 0 And x < szfImageSize.Width) And (y > 0 And y < szfImageSize.Height) Then 'If Not Out Of Bounds

arrlPixels.Add(bmpBlurDest.GetPixel(x, y)) 'Add To ArrayList

End If

Next

Next

Dim clrCurrColour As Color 'Current Colour

Dim intAlpha As Integer = 0 'Alpha Channel
Dim intRed As Integer = 0 'Red Channel
Dim intGreen As Integer = 0 'Green Channel
Dim intBlue As Integer = 0 'Blue Channel

For Each clrCurrColour In arrlPixels 'Loop Through Each Colour

'Store Each Colour
intAlpha += clrCurrColour.A
intRed += clrCurrColour.R
intGreen += clrCurrColour.G
intBlue += clrCurrColour.B

Next

' Return Average A, R, G, B
Return Color.FromArgb(intAlpha / arrlPixels.Count, intRed / arrlPixels.Count, intGreen / arrlPixels.Count, intBlue / arrlPixels.Count)

End Function

'Blur Sub
Private Sub GaussianBlur(ByVal blnAlphaEdges As Boolean, ByVal szBlurSize As Size)

Dim Y As Integer 'Y
Dim X As Integer 'X

Dim bmpBlurDest As Bitmap = picBlurDest.Image.Clone 'Clone Of Image

'Show Progress
lblProgress.Text = "Applying Gaussian Blur " & szBlurSize.ToString

prgBlurProgress.Maximum = bmpBlurDest.Height * bmpBlurDest.Width 'Set Max

prgBlurProgress.Minimum = 0 'Set Min

prgBlurProgress.Value = 0 'Initialize Value

'Loop Through Image
For Y = 0 To bmpBlurDest.Width - 1 'Top To Bottom

' Left To Right
For X = 0 To bmpBlurDest.Height - 1

If Not blnAlphaEdges Then 'AlphaEdges Not Chosen

bmpBlurDest.SetPixel(X, Y, ColourAvg(szBlurSize, bmpBlurDest.PhysicalDimension, X, Y)) 'Do Blur

ElseIf bmpBlurDest.GetPixel(X, Y).A <> 255 Then 'Alpha Is Not Set To 255

bmpBlurDest.SetPixel(X, Y, ColourAvg(szBlurSize, bmpBlurDest.PhysicalDimension, X, Y)) 'Do Blur

End If

prgBlurProgress.Value += 1 'Update Progress

Application.DoEvents() 'Ensure App Doesn't Hang

Next

Next

picBlurDest.Image = bmpBlurDest.Clone 'Update Blurred Image

bmpBlurDest.Dispose() 'Remove From Memory

End Sub

Private Sub btnBlur_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnBlur.Click

GaussianBlur(chkAlphaEdges.Checked, New Size(8, 8)) 'Call Blur Function

End Sub

Tried ported to CE Lua script (Not finish yet)

Code:

if f then f.destroy() end
f = createForm()
f.Position = 'poScreenCenter'
f.setSize(352,290)
f.Caption = 'Gaussian Blur CE 7.1 Example'

picBlurSource = createImage(f)
picBlurSource.setSize(160,160)
picBlurSource.setPosition(12,12)
picBlurSource.Stretch = true
picBlurSource.Picture.loadFromStream(findTableFile('woman.jpg').Stream)

picBlurDest = createImage(f)
picBlurDest.setSize(160,160)
picBlurDest.setPosition(180,12)
picBlurDest.Stretch = true
picBlurDest.Picture.loadFromStream(findTableFile('woman.jpg').Stream)

btnBlur = createButton(f)
btnBlur.setSize(171,23)
btnBlur.setPosition(12,200)
btnBlur.Caption = 'Blur'

chkAlphaEdges = createCheckBox(f)
chkAlphaEdges.setPosition(210,202)
chkAlphaEdges.Caption = 'Enable Alpha Edges'
chkAlphaEdges.Checked = false

lblProgress = createLabel(f)
lblProgress.setPosition(12,232)
lblProgress.Caption = 'tes'

prgBlurProgress = createProgressBar(f)
prgBlurProgress.Left = 12
prgBlurProgress.Top = 250
prgBlurProgress.setSize(328, 23)
prgBlurProgress.Value = 0
prgBlurProgress.Step = 10
prgBlurProgress.Min = 0
prgBlurProgress.Max = 100

--------------------------------------------------------------

function ColourAvg(szAvgSize, szfImageSize, intX, intY)
local arrlPixels = {}
local x, y
local bmpBlurDest = picBlurDest.Picture.Bitmap

for x = intX - (szAvgSize.Width / 2), intX + (szAvgSize.Width / 2) do
for y = intY - (szAvgSize.Height / 2), intY + (szAvgSize.Height / 2) do
if (x > 0 and x < szfImageSize.Width) and (y > 0 and y < szfImageSize.Height) then
table.insert(arrlPixels, bmpBlurDest.getPixel(x, y))
end
end
end

-- not ported to Lua yet
local clrCurrColour

local intAlpha = 0
local intRed = 0
local intGreen = 0
local intBlue = 0

for clrCurrColour in arrlPixels do
intAlpha = intAlpha + clrCurrColour.A
intRed = intRed + clrCurrColour.R
intGreen = intGreen + clrCurrColour.G
intBlue = intBlue + clrCurrColour.B
end

-- not ported to Lua yet
return Color.FromArgb(intAlpha / arrlPixels.Count, intRed / arrlPixels.Count,
intGreen / arrlPixels.Count, intBlue / arrlPixels.Count)
end

function GaussianBlur(blnAlphaEdges, szBlurSize)
local X, Y
local bmpBlurDest = picBlurDest.Picture.Bitmap
lblProgress.Text = "Applying Gaussian Blur "..tostring(szBlurSize)
prgBlurProgress.Maximum = bmpBlurDest.Height * bmpBlurDest.Width
prgBlurProgress.Minimum = 0
prgBlurProgress.Value = 0

for Y = 0, bmpBlurDest.Width - 1 do
for X = 0, bmpBlurDest.Height - 1 do
if not blnAlphaEdges then
bmpBlurDest.setPixel(X, Y, ColourAvg(szBlurSize, bmpBlurDest.PhysicalDimension, X, Y))
elseif bmpBlurDest.getPixel(X, Y).A ~= 255 then
bmpBlurDest.setPixel(X, Y, ColourAvg(szBlurSize, bmpBlurDest.PhysicalDimension, X, Y))
end
prgBlurProgress.Value = prgBlurProgress.Value + 1
end
end

picBlurDest.Picture = bmpBlurDest.Bitmap
end

function btnBlur_Click(sender, e)
GaussianBlur(chkAlphaEdges.Checked, 8, 8)
end

-------------------------------------------------------
f.Show()
btnBlur.OnClick = btnBlur_Click

_________________

Stealing Code From Stolen Code...
And Admit It.. Hmmm....Typically LOL

.lua
Expert Cheater

Reputation: 1

Joined: 13 Sep 2018
Posts: 202

Posted: Sat Aug 29, 2020 1:57 am Post subject:

Corroder wrote:

Tried ported to CE Lua script (Not finish yet)

There are errors on lines 49 and 90, trying to call a null value
