HELP: inject jmp cave to capture non-static address .problem


Post new topic   Reply to topic    Cheat Engine Forum Index -> General Gamehacking
View previous topic :: View next topic
Author Message
4:20
How do I cheat?
Reputation: 0

Joined: 07 Jun 2010
Posts: 2

PostPosted: Tue Jun 08, 2010 1:05 pm    Post subject: HELP: inject jmp cave to capture non-static address .problem Reply with quote

hi, great tutorial that came with the install ..I learned a lot, .thanks!

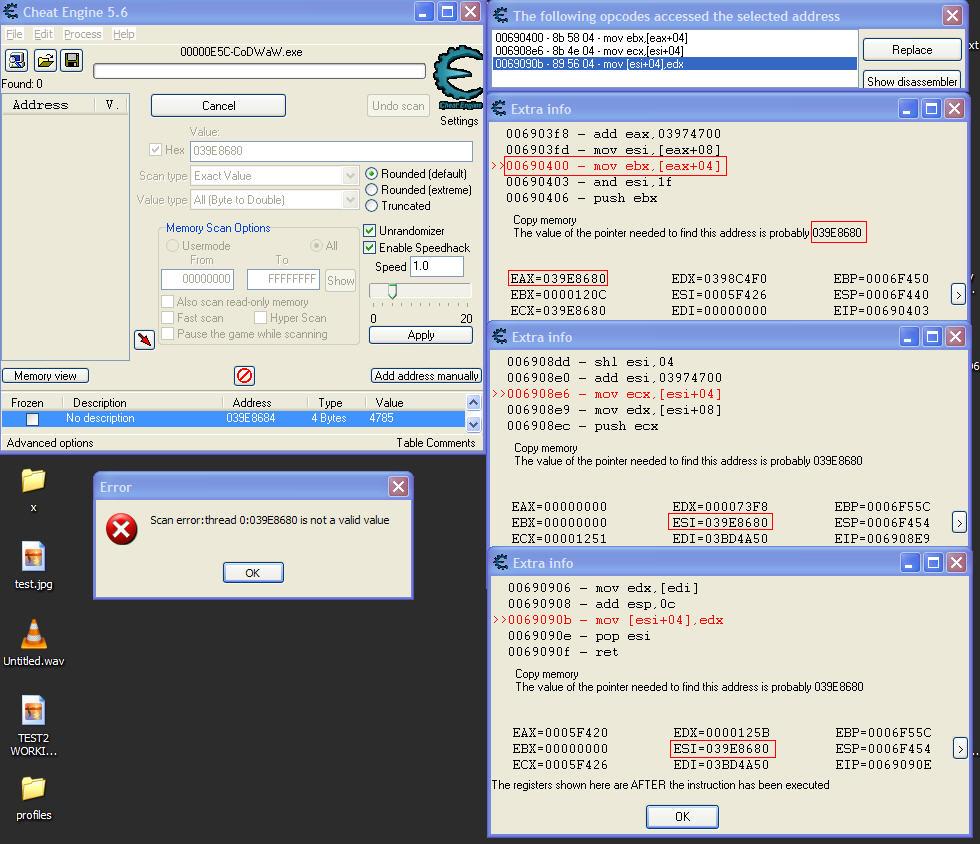

having some trouble storing a non static address, the addr changes each time the game starts, tried to scan and follow the pointers like tutorials1-9 ..but, see the error I get on the first step, in the pic attached, along with other details

in this instance/example, the addr is 039E8680, and is accessed by the following 3 lines of code:

Code:
00690400 - 8b 58 04 - mov ebx,[eax+04]
EAX = 039E8680

006908e6 - 8b 4e 04 - mov ecx,[esi+04]
ESI = 039A598O

0069090b - 89 56 04 - mov [esi+04],edx
ESI = 039A598O


so I created a a jmp@00690400 using auto-assemble feature, to capture the addr when it is referenced and store it in pointerxp

the game continues to work ok after injection, but when I check the value@pointerxp ...hard to explain but when I look at the address in the mem viewer the value changes at least once every second ..the rapidly changing values look like opcodes , mov,, jmp etc... not the address value I was expecting to catch with my code cave

..I tried putting the original opcode( mov ebx,[eax+04] ) before the new code so it was actually 'executed' like GE's 'more info' snapshot ...but still no luck grabbing the addr

...hope all this makes sense

Code:
alloc(newmem,2048) //2kb should be enough
label(returnhere)
label(originalcode)
label(exit)
alloc(pointerxp,4)

00690400:
jmp newmem
nop
returnhere:

newmem: //this is allocated memory, you have read,write,execute access
push eax
lea eax,[eax+04]
mov [pointerxp],eax
pop eax


originalcode:
mov ebx,[eax+04]
and esi,1f

exit:
jmp returnhere



 Description:
 Filesize:  148.96 KB
 Viewed:  5643 Time(s)



Back to top
View user's profile Send private message
Dark Byte
Site Admin
Reputation: 470

Joined: 09 May 2003
Posts: 25807
Location: The netherlands

PostPosted: Tue Jun 08, 2010 1:25 pm    Post subject: Reply with quote

regarding the error in the screenshot, that's a bug, the hex checkbox should not have been visible for the "all" type
_________________
Do not ask me about online cheats. I don't know any and wont help finding them.

Like my help? Join me on Patreon so i can keep helping
Back to top
View user's profile Send private message MSN Messenger
4:20
How do I cheat?
Reputation: 0

Joined: 07 Jun 2010
Posts: 2

PostPosted: Tue Jun 08, 2010 2:29 pm    Post subject: Reply with quote

ahh ok, good to know

...came up empty on a 4 byte search ..same with the other settings ..no errors this time at least

I'm thinking this address is set randomly each time the game starts and doesn't have a pointer that can be found easily/normally, btw I can hack this address easily/manually in tsearch my interest is purely for learning purposes and doing something more interesting than just changing a value in mem to play a game

you may recognise this code db from your c&c thread, I wasn't sure if should leave out the lea command or not ..is it possible this code is storing a pointer to the eax register as its value(instead of the value/addr at the time of capture) and thats why the pointerxp value is fluctuating with op-codes,?

what do I need to do to capture the addr from eax in the same way that CE does it with 'more info' ..iow accurately capture/read the addr in the eax register

Code:
newmem:
push eax
lea eax,[eax+04]
mov [pointerxp],eax //eax is addr to capture
pop eax

originalcode:
mov ebx,[eax+04]
and esi,1f
Back to top
View user's profile Send private message
Dark Byte
Site Admin
Reputation: 470

Joined: 09 May 2003
Posts: 25807
Location: The netherlands

PostPosted: Wed Jun 09, 2010 1:48 pm    Post subject: Reply with quote

that add (esi/eax),03974700 is a weird one

can you check if the memory at 03974700 always exists ?
If so, that's a static memory location

_________________
Do not ask me about online cheats. I don't know any and wont help finding them.

Like my help? Join me on Patreon so i can keep helping
Back to top
View user's profile Send private message MSN Messenger
4:20
How do I cheat?
Reputation: 0

Joined: 07 Jun 2010
Posts: 2

PostPosted: Thu Jun 10, 2010 5:36 pm    Post subject: Reply with quote

from what I can make out 03974700 always exists as a memory address, and as arguments in those lines of code at runtime, but..

ADD EAX,CoDWaW.03974700

if I step through and check with calc it seems to be adding: 03974700 + eax as actual values rather than the value@addr ..as the calc shows the same hex value that ends up in eax as a result of the add

Iv noticed each time the game restarts the dynamic address in question always starts with 039 ...so I'm wondering if 03974700 is maybe a kind of base value to generate a 'partially random' address(within the limits of 039)

I think I know now why my cave code doesn't capture the addr but CE does it perfectly, ....all 3 asm lines that access the address in question are in a kind of loop..even with no user input ...and the elusive addr is only stored in eax/esi when a 'points scored' event occurs ..CE takes a snapshot of the registers ONLY when one of the 3 lines of code access the addr ...iow only 'when points have been scored' and the addr needs updating

which brings me to my current problem, as the code below is constantly in a kind of loop at runtime...
how can I generate a 'points scored event' while using breakpoints ..as in order to step through the code and read the registers properly etc the game is frozen by the debugger..until I can work out how I can debug a 'points event' everything is guess work

ps
ask me again if iv misunderstood your question

--> 3 x asm lines that access the address in question
--# 2 x add CoDWaW.03974700

Code:
006903B0           /$  55                PUSH EBP
006903B1           |.  8BEC              MOV EBP,ESP
006903B3           |.  83E4 F8           AND ESP,FFFFFFF8
006903B6           |.  8B45 08           MOV EAX,[ARG.1]
006903B9           |.  83EC 08           SUB ESP,8
006903BC           |.  53                PUSH EBX
006903BD           |.  8B5D 0C           MOV EBX,[ARG.2]
006903C0           |.  03C3              ADD EAX,EBX
006903C2           |.  33D2              XOR EDX,EDX                                ;  CoDWaW.022990F8
006903C4           |.  B9 FDFF0000       MOV ECX,0FFFD
006903C9           |.  F7F1              DIV ECX
006903CB           |.  56                PUSH ESI                                   ;  dsound.73F66050
006903CC           |.  8BF7              MOV ESI,EDI                                ;  dsound.73F66050
006903CE           |.  8BC7              MOV EAX,EDI                                ;  dsound.73F66050
006903D0           |.  69F6 00600100     IMUL ESI,ESI,16000                         ;  dsound.73F66050
006903D6           |.  83C2 01           ADD EDX,1
006903D9           |.  52                PUSH EDX                                   ;  CoDWaW.022990F8
006903DA           |.  53                PUSH EBX
006903DB           |.  E8 40B8FFFF       CALL CoDWaW.0068BC20
006903E0           |.  03C6              ADD EAX,ESI                                ;  dsound.73F66050
006903E2           |.  C1E0 04           SHL EAX,4
006903E5           |.  0FB780 00479703   MOVZX EAX,WORD PTR DS:[EAX+3974700]
006903EC           |.  83C4 08           ADD ESP,8
006903EF           |.  85C0              TEST EAX,EAX                               ;  CoDWaW.0059466A
006903F1           |.  74 2A             JE SHORT CoDWaW.0069041D
006903F3           |.  03C6              ADD EAX,ESI                                ;  dsound.73F66050
006903F5           |.  C1E0 04           SHL EAX,4
--#006903F8        |.  05 00479703       ADD EAX,CoDWaW.03974700
006903FD           |.  8B70 08           MOV ESI,DWORD PTR DS:[EAX+8]
-->00690400        |.  8B58 04           MOV EBX,DWORD PTR DS:[EAX+4]
00690403           |.  83E6 1F           AND ESI,1F




Code:

006908D0           /$  56                PUSH ESI
006908D1           |.  8BF0              MOV ESI,EAX
006908D3           |.  69F6 00600100     IMUL ESI,ESI,16000
006908D9           |.  037424 08         ADD ESI,DWORD PTR SS:[ESP+8]
006908DD           |.  C1E6 04           SHL ESI,4
--#006908E0           |.  81C6 00479703     ADD ESI,CoDWaW.03974700
-->006908E6        |.  8B4E 04           MOV ECX,DWORD PTR DS:[ESI+4]
006908E9           |.  8B56 08           MOV EDX,DWORD PTR DS:[ESI+8]
006908EC           |.  51                PUSH ECX
006908ED           |.  83E2 1F           AND EDX,1F
006908F0           |.  52                PUSH EDX
006908F1           |.  50                PUSH EAX
006908F2           |.  E8 C9F8FFFF       CALL CoDWaW.006901C0
006908F7           |.  8366 08 E0        AND DWORD PTR DS:[ESI+8],FFFFFFE0
006908FB           |.  8B46 08           MOV EAX,DWORD PTR DS:[ESI+8]
006908FE           |.  8B4F 04           MOV ECX,DWORD PTR DS:[EDI+4]
00690901           |.  0BC8              OR ECX,EAX
00690903           |.  894E 08           MOV DWORD PTR DS:[ESI+8],ECX
00690906           |.  8B17              MOV EDX,DWORD PTR DS:[EDI]
00690908           |.  83C4 0C           ADD ESP,0C
-->0069090B        |.  8956 04           MOV DWORD PTR DS:[ESI+4],EDX
0069090E           |.  5E                POP ESI                                    ;  ntdll.7C90D21A
0069090F           \.  C3                RETN
